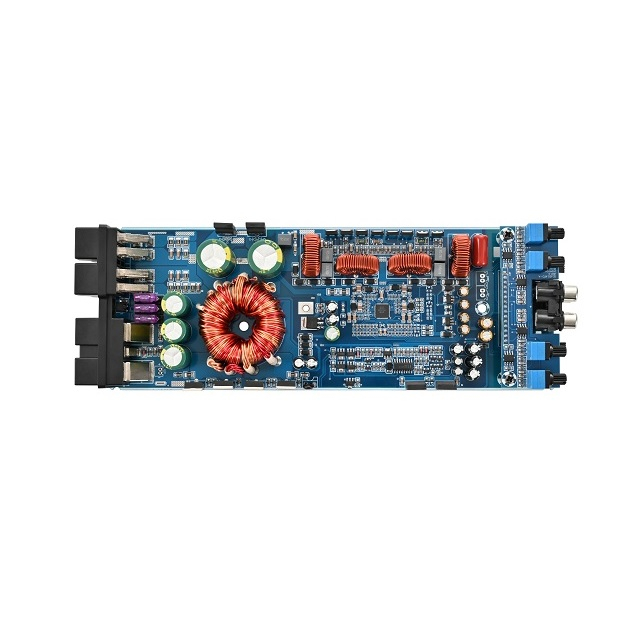

This product uses Infineon's MA5332MS chip, which integrates MOS transistors internally and has very few external components.It has an extremely low Rds (on) and a typical value of only 24.4m ohms. Under a load of 4 ohm load, it can output 2*100W without the need for a heatsink. And the efficiency can reach 95% when the output is 2*200W.
- Input Signal : analog input
- Amplifier Type: Class-D
- Input Channel: 2
- Input Voltage: +50v(maximum)
- Self-Excited Oscillation Frequency: 400KHz
- Output Power CH1-2: 200W(@1KHz,4 ohms)
- Signal to Noise Ratio: 110dB
- Total Distortion Rate @1KHz(%): 0.01%(@1KHz, 70w.4 ohms)
- Residual Noise: 250uVrms
